Overview

Run a climate simulation

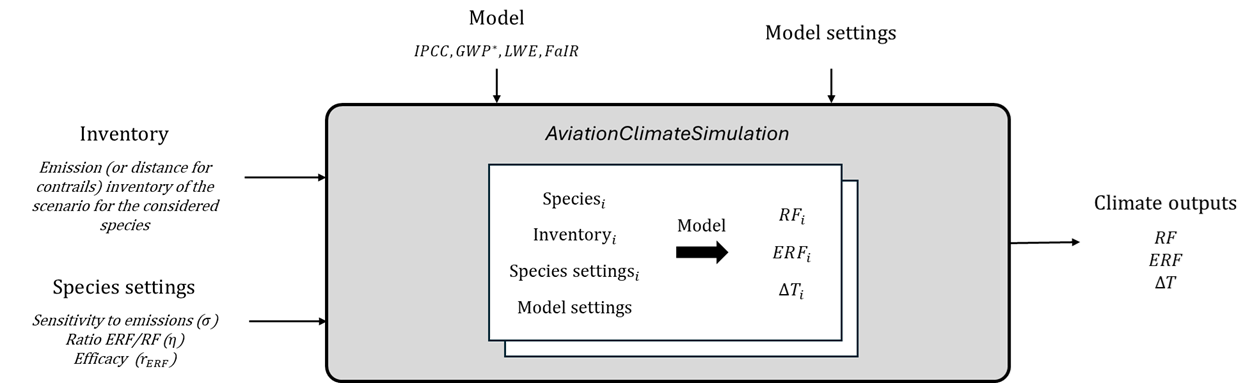

The following figure corresponds to the process for using standardised aviation climate models, using the AviationClimateSimulation class.

Figure 1

The climate outputs available are RF, ERF and surface temperature change (\(\Delta T\)). The current process allows for the inclusion of the following species: CO2, contrail cirrus, NOx (via short-term ozone increase, and via long-term methane loss and induced effects), water vapour, aerosol-radiation interactions from soot emissions, and aerosol-radiation interactions from sulphur emissions. Note that the framework could easily be adapted to integrate new species, such as aerosol-cloud interactions from soot or sulphur emissions.

An emission inventory is needed for the considered species. In the case of contrails, the decision was made to use an indicator based on 2018 flight distance. This indicator corresponds to the annual distance flown by aircraft in the considered year, adjusted for the effects of alternative fuels and contrail avoidance strategies compared to 20181.

Species settings are then required for calibrating their effects on climate, using by default data from Lee et al.2. Most of the time, three settings are available. First, the sensitivity to emissions \(\sigma\) corresponds to the RF induced by a unit species emission. Secondly, the ratio \(\eta\) corresponds to the ratio of the ERF to the RF. This parameter enables the rapid radiative adjustments to be taken into account. Lastly, the (ERF) efficacy \(r_{ERF}\) corresponds to the ratio of the climate sensitivity of the considered species to that of CO2, with the climate sensitivity being defined here as the induced global mean surface temperature response per unit ERF. This parameter enables the slow feedbacks to be taken into account3.

An aviation climate model is finally chosen for running the simulation for each considered species. Four aviation climate models are currently available: IPCC, GWP*, LWE, and FaIR. Note that species settings can differ depending on the climate model chosen, and that dedicated model settings are available.

Calculate climate metrics

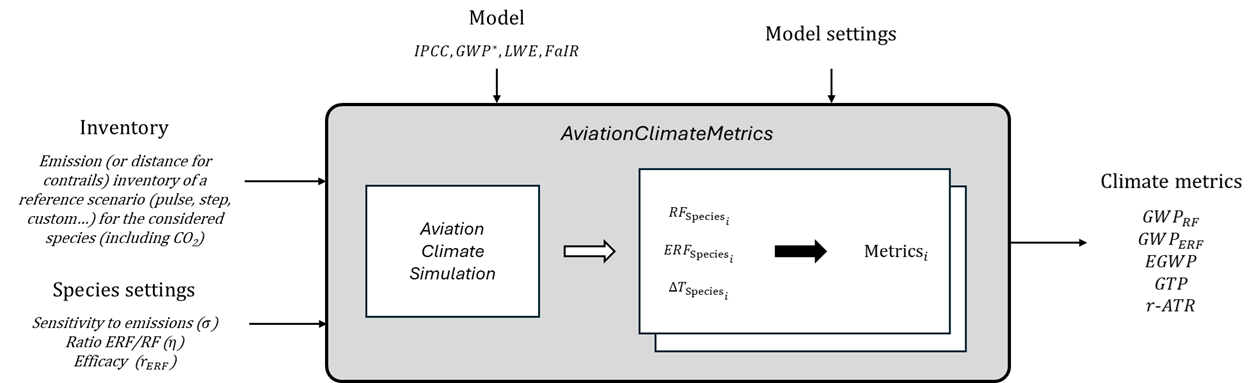

The following figure corresponds to the process for calculating aviation climate metrics, using the AviationClimateMetricsCalculation class.

Figure 2

In a first step, this process directly relies on the AviationClimateSimulation class for estimating the climate outputs, requiring the same inputs. Concerning the emission inventory, reference emission profiles (pulse, step and combined) are available to simplify the use, but it is also possible to set a custom scenario. In a second step, several climate metrics are calculated. The list of the considered metrics is provided in the following table. This table specifies the definitions of the absolute metrics and the corresponding relative metrics (relative to CO2), which are generally those of interest. The choice of the metrics of interest was inspired by the work of Megill et al.4, with modifications made to clarify the distinction between RF and ERF.

Relative metric Absolute metric
\(GWP_{RF}\) \(AGWP_{RF}(H) = \displaystyle\int_{t_0}^{t_0+H} RF(t)\, dt\)
\(GWP_{\text{ERF}}\) \(AGWP_{ERF}(H) = \displaystyle\int_{t_0}^{t_0+H} ERF(t)\, dt = \eta \int_{t_0}^{t_0+H} RF(t)\, dt = \eta \cdot AGWP_{RF}(H)\)
\(EGWP\) \(AEGWP(H) = r_{RF} \int_{t_0}^{t_0+H} RF(t)\, dt = r_{RF} \cdot AGWP_{RF}(H) = r_{ERF} \cdot AGWP_{ERF}(H)\)
\(GTP\) \(AGTP(H) = \Delta T(t_0 + H)\)
\(r\text{-}ATR\) \(ATR(H) = \dfrac{1}{H} \int_{t_0}^{t_0+H} T(t)\, dt\)

  1. Sara Arriolabengoa, Thomas Planès, Philippe Mattei, Daniel Cariolle, and Scott Delbecq. Lightweight climate models could be useful for assessing aviation mitigation strategies and moving beyond the CO2-equivalence metrics debate. Communications Earth & Environment, 5(1):716, 2024. doi:10.1038/s43247-024-01888-5. ↩

  2. David S Lee, David W Fahey, Agnieszka Skowron, Myles R Allen, Ulrike Burkhardt, Qi Chen, Sarah J Doherty, Sarah Freeman, Piers M Forster, Jan Fuglestvedt, and others. The contribution of global aviation to anthropogenic climate forcing for 2000 to 2018. Atmospheric environment, 244:117834, 2021. doi:10.1016/j.atmosenv.2020.117834. ↩

  3. Marius Bickel, Michael Ponater, Ulrike Burkhardt, Mattia Righi, Johannes Hendricks, and Patrick Jöckel. Contrail cirrus climate impact: from radiative forcing to surface temperature change. Journal of Climate, 38(8):1895–1912, 2025. doi:10.1175/JCLI-D-24-0245.1. ↩

  4. Liam Megill, Kathrin Deck, and Volker Grewe. Alternative climate metrics to the Global Warming Potential are more suitable for assessing aviation non-CO2 effects. Communications Earth & Environment, 5(1):249, 2024. doi:10.1038/s43247-024-01423-6. ↩
